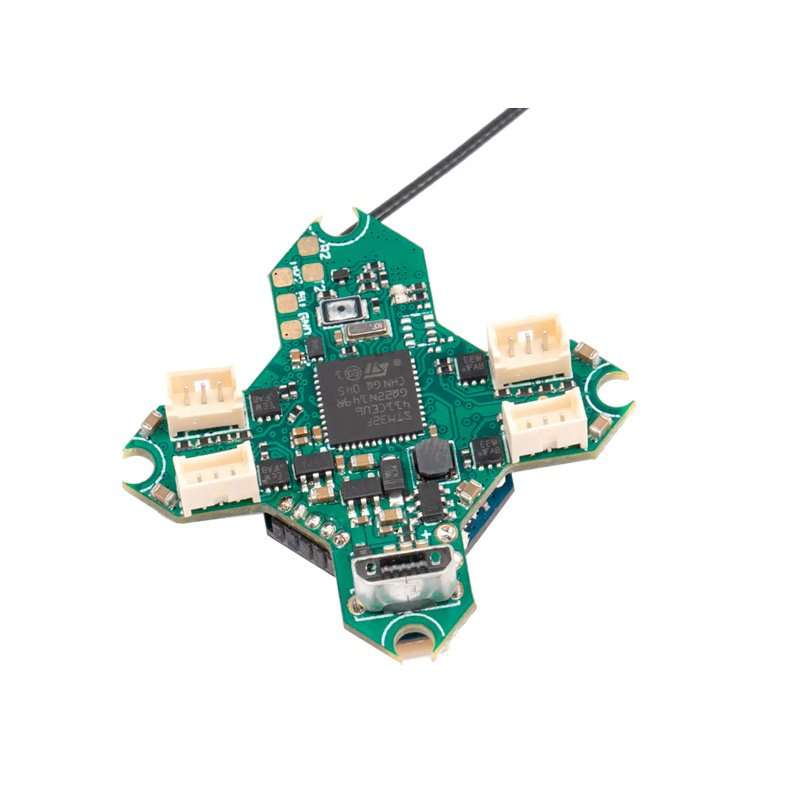

BLITZ F411 1S Whoop AIO – w/Rx
PRODUCT DESCRIPTION
What if you could get the MCU speed and ESC power of a big stack, but carefully laid out on a 25×25 whoop-sized board? It would be amazing, right? Well, we've done it…
This is
our new iFlight BLITZ series of AIO FCs for your ultimate build. A future-proof all-in-one FC to raise the game and leave room for future development of flight firmware such as Betaflight, Emuflight, etc. Lightweight, minimal size, minimal work. This was only possible by using BGA chipsets instead of ordinary (oversized) QFP MCUs and ultra-powerful MOSFETs for almost any build. Just solder your motor wires and you're done! Plug&Play DJI port and so many UARTs that most people wouldn't even use them all. Compatible with digital and analog FPV, built-in barometer for possible long-range flights and much more. Unleash the beast!
Key features:
- Sistema digital Vista Plug-and-Play (passthrough VBAT)
- MCU: BGA-STM32F745, 216MHz
- OSD: AT7456E
- Blackbox: 16MB Flash Onboard
- Giroscopio: MUP6000
Safety reminder:
The DJI plug&play port has no voltage regulator (BEC) and is passing through VBAT. The Caddx Vista handles up to 26.4V (6S), the DJI Air Unit up to 17.6V (4S). Make sure you do not connect your DJI Air Unit directly when flying on 6S, because this would fry it! A BEC to add to your 6S build can be found here: https://shop.iflight-rc.com/index.php?route=product/product&product_id=747
Small 4S motor builds generally need an additional capacitor of at least 16V/220uF; for 6S go up to 35V or even 50V. Larger motors have higher current demand, higher voltage spikes and more serious back EMF (motor braking, which works as a generator). Make sure to add sufficiently large low-ESR capacitors on the AIO battery pad or on your battery lead, the more aggressive the motors you fly. There is a capacitor option in the package, but it never hurts to make sure you protect your board. Smaller boards have less capacitance, which must be covered by external capacitors; there is no other way.
FC // BLITZ F7 AIO
Specification:
- MCU: BGA-STM32F745
- Giroscopio: MUP6000
- Blackbox: 16MB Flash Onboard
- Salida BEC: 5V 2.5A
- Barometer: DPS310
- Conector: Micro-USB
- OSD: IFLIGHT OSD (AT745E）
- Firmware FC: IFlight_F745_AIO
- Firmware ESC: G-H-50 BLS
- Mounting pattern: 25.5*25.5mm φ3mm
- Dimensiones: 32.5*32.5mm
- Peso: 8.5g
ESC // 55A 2-6S
Specification:
- Uarts: 5
- Current sensor: Yes
- Entrada: 2-6S LiPo
- Current scale: 100
- Current sensor: Yes
- Constante: 55A / Pico: 60A
- MCU ESC: 8BB21
- BLHeli: BLHeli-S
- Telemetry: No
- Firmware ESC: G-H-30 BLS
- Mounting pattern: 25.5*25.5mm/Φ3mm
- Dimensiones: 32.5*32.5mm
Wiring suggestion:
UART1/4/7 for GPS or other sensors that need a serial port
UART2 for HD/Analog VTX Telemetry
UART3 for Receiver
The package includes:
– 1 x Placa AIO BLITZ F7 55A
– 2 x Condensador 470uF/35V
– 1 x Cable XT60 16AWG 100mm
– 1 x Cable XT30U 18AWG 70mm
– 1 x Cable 1.0-7P 50mm-28mm
– 1 x Cable 1.0-7P 50mm
– 4 x M2 silicone nuts
– 8 x Tornillos M2*12mm
– 8 x M2 transparent nylon nuts
– 8 x 0.8mm 10mm black heat-shrink tube
Diagrama
❓ Preguntas Frecuentes
Is this product compatible with my drone?
This component follows market standards. Check whether you use an analog or digital (HD) system and your battery voltage.
When will it arrive?
If you buy now, we ship within 24h from our warehouse in Spain.
Preguntas Frecuentes (FAQ)
Q: Which receiver protocols are compatible with the BLITZ F411 1S Whoop AIO and what is the telemetry limitation?
A: The BLITZ F411 1S Whoop AIO is compatible with the CC2500, SPI, D8 and S-FHSS protocols. It also supports F.PORT protocol RX input. However, it is important to note that it **does not support telemetry**.
Q: What continuous and peak current can the integrated ESC handle and what firmware does it use? Is it compatible with DShot?
A: The integrated ESC can handle a continuous current of 5A and a peak current of 6A. It uses O-H-30 BLS 16.8 (BlheliS) or Bluejay Q-H-50 (Bluejay) firmware. **Yes, it is compatible with the DShot signal**, as well as Oneshot and Multishot.
Q: The product mentions a 25.5*25.5mm φ3mm mounting pattern. What does this mean and what prop mounts are compatible?
A: The 25.5*25.5mm φ3mm mounting pattern indicates that the mounting holes for fixing the board to a frame are 25.5mm apart, forming a square. 'φ3mm' means the hole diameter is 3mm. This makes it compatible with most 1S 'whoop' frames that use this standard, and therefore with props typically 65mm or 75mm in size.
