PUDA Chameleon230 HD5
Product name: Chameleon230 HD5
Frame type: H type
Maximum paddle support: 5 inch
Wheelbase: 230mm
Size: 136*186mm
Weight: 155g (including 3D prints)
Base plate thickness: 3mm
Center plate thickness: 2mm
Roof thickness: 2mm
Side plate thickness: 2mm
Plywood thickness: 1.5mm
Arm thickness: 5mm
Recommended configuration: (not included)
Flight control: F7 / F4 / H7
Engine: 2205/2206/2207/2305/2306
ESC: 30A-50A
Battery: 4S 1500mAh ~ 6S 1300mAh
Picture Transmission: DJI Digital Sky
Package Included:

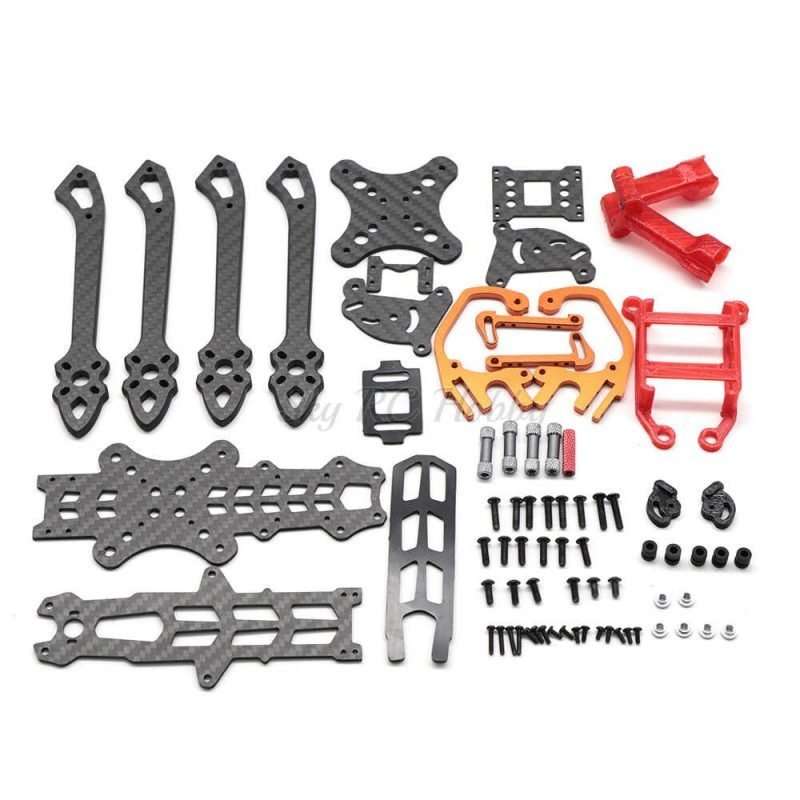

1 x Chameleon230 HD5 Frame Kit
❓ Preguntas Frecuentes
Is this product compatible with my drone?
This component follows market standards. Check whether you use an analog or digital (HD) system and your battery voltage.
When will it arrive?
Order now and we ship within 1–2 business days from our warehouse in Spain.
Preguntas Frecuentes (FAQ)
Q: What range of motors is compatible with the PUDA Chameleon230 HD5 frame and what is the recommendation for more agile flying versus flight-time-oriented flying?
A: The PUDA Chameleon230 HD5 frame is compatible with motors ranging from 2205 to 2306. For more agile, more responsive flying, 2306 motors with a higher kV (for example, 2450kV) are recommended. For more endurance-oriented flying, 2207 or 2305 motors with a lower kV (for example, 1700kV – 1900kV) would be more suitable, allowing longer flight time with a similar battery.
Q: The PUDA Chameleon230 HD5 frame specifies compatibility with DJI Digital Sky. What does this imply and what additional components do I need to take advantage of this functionality?
A: DJI Digital Sky compatibility means the frame is designed to house the DJI FPV digital video transmission system. To take advantage of this functionality, you will need to buy separately the DJI FPV Air Unit module (or the latest version) and the DJI FPV camera. You will also need to make sure your VTX (Video Transmitter) is compatible with the DJI Digital system, since the Air Unit integrates the VTX.
Q: What is the thickness of the frame's arms and what type of material is used in its construction? Is it suitable for aggressive, acrobatic flying?
A: The arms of the PUDA Chameleon230 HD5 frame are 5mm thick. The frame is built from a combination of materials, including 3mm, 2mm and 1.5mm thick plates. This construction, together with the arm thickness, makes it suitable for aggressive, acrobatic flying, offering good strength and durability. However, as with any FPV frame, final durability will depend on the pilot's skill and flying conditions.
